The Squadron Pro (white) packs 4,900 Lumens at 40 watts that will truly annihilate the night. Don't let this light fool you, although compact in size this LED auxiliary light will literally blind you with brightness. The Squadron Pro comes equipped with a sleek black gloss aluminum housing and outshines the competition through both appearance and performance. An industry first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection.

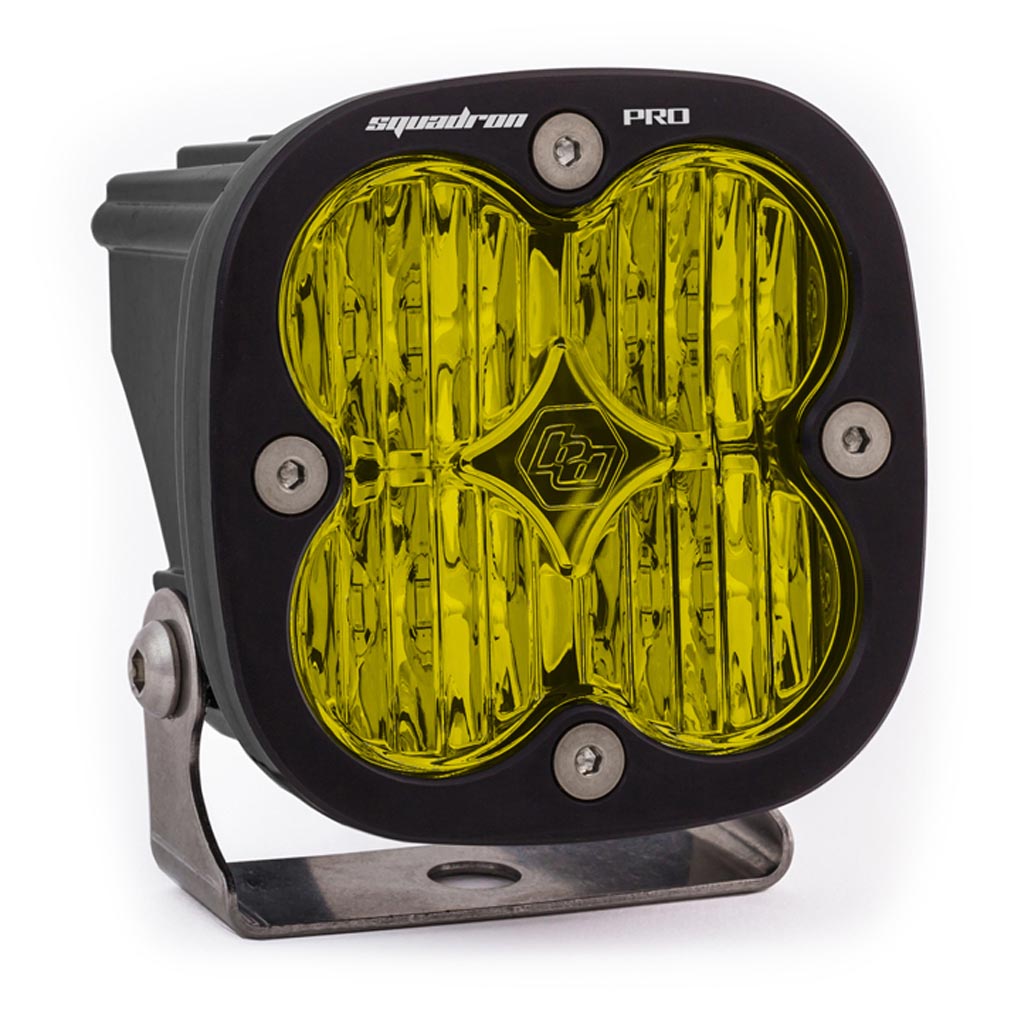

NOTE When Amber is selected Net Lumens is 4,300 Each light
Baja Designs Features:
- Satisfactions Guarantee - 30 Day Money Back Guarantee
- Limited Lifetime Warranty - Complete Purchase Protection
- uService - Replaceable Lenses And Optics
- ClearView - All The Light, Right Where You Need It.
- MoistureBlock - Waterproof, Rain Proof, Submersible
- CopperDrive - Only LED Driven At 100 percent
- 5000K Daylight - Less Driver Fatigue, Natural Color
Specifications (per light):
- Lumens: 4,900 Utilizing 4 Cree XP-L LEDs
- Wattage/Amps: 40W / 3.33A
- Dimensions: 3.07 x 2.77 x 3.07 inch
- Weight: 12 ounces
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Hard Anodized and Powder Coated Cast Aluminum
- Bezel: Billet Machined Aluminum
- Hardware and Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof, Submersible to 9ft)
- IK10 Compliant (Mechanical Impact Testing)
One Pod Includes:
Squadron Pro LED Light
Mounting Bracket
Pair Includes:
2x Squadron Pro LED Lights
Mounting Bracket
Wiring Harness
Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)
Spot: A longer and narrower 9° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
Work/Scene: Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft. This pattern is not suitable for driving. (Lighting Zone 7)
Light Options:

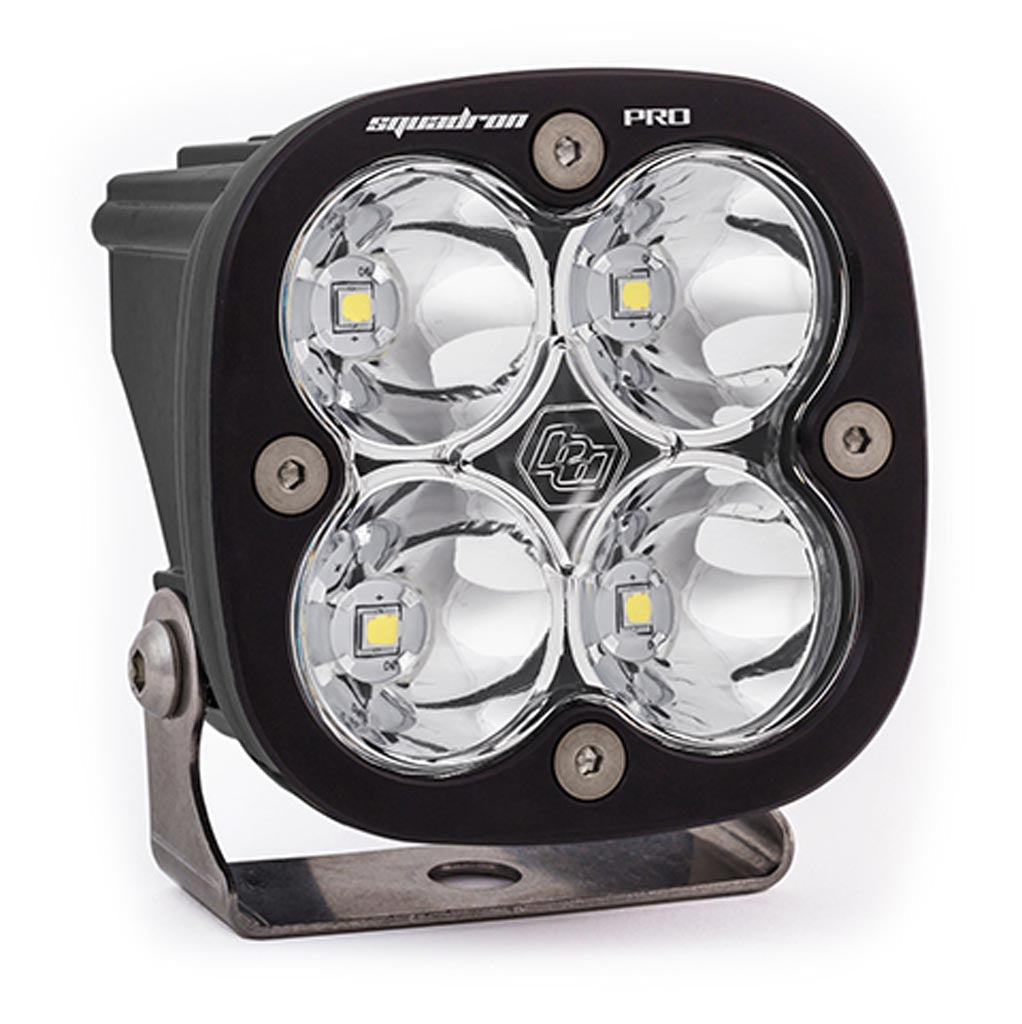

- Baja Designs Squadron Pro White / Spot / One Pod Only / 490001

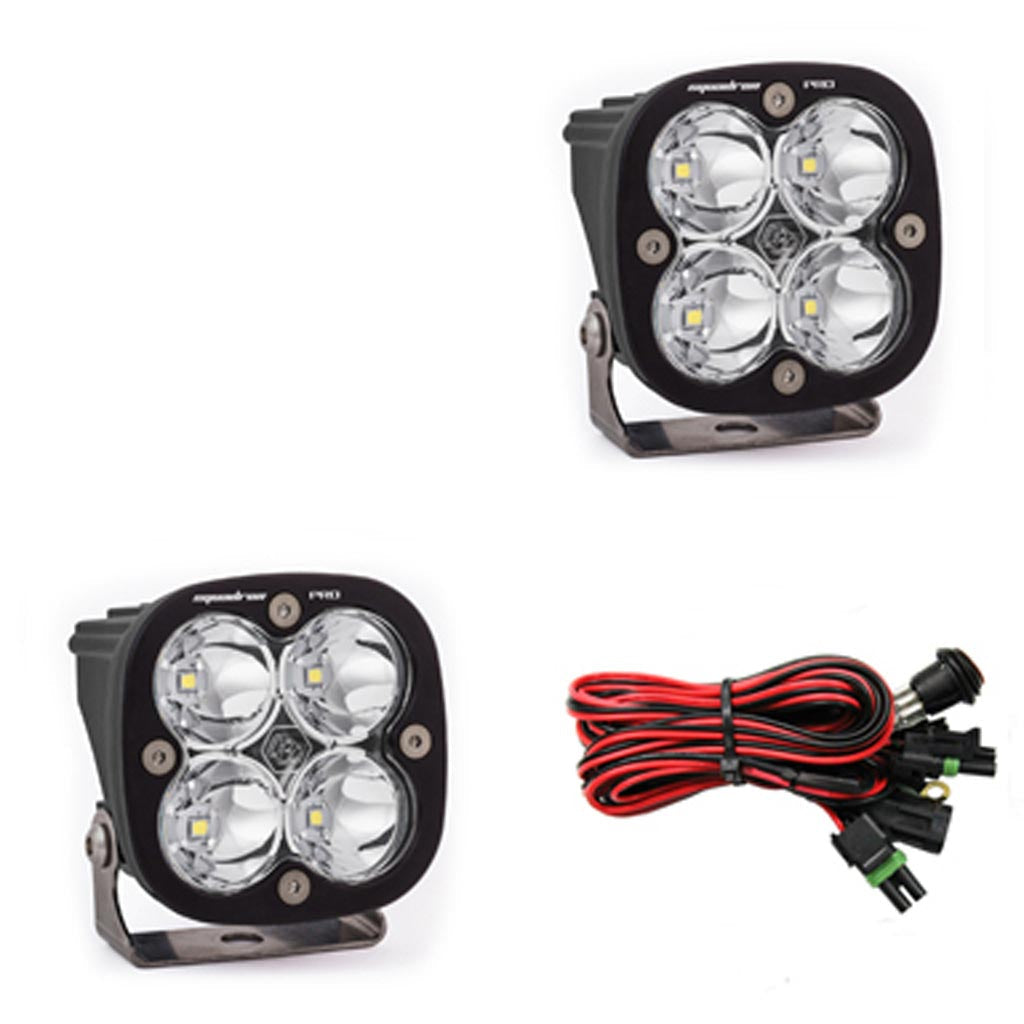

- Baja Designs Squadron Pro White / Spot Pair With Harness / 497801

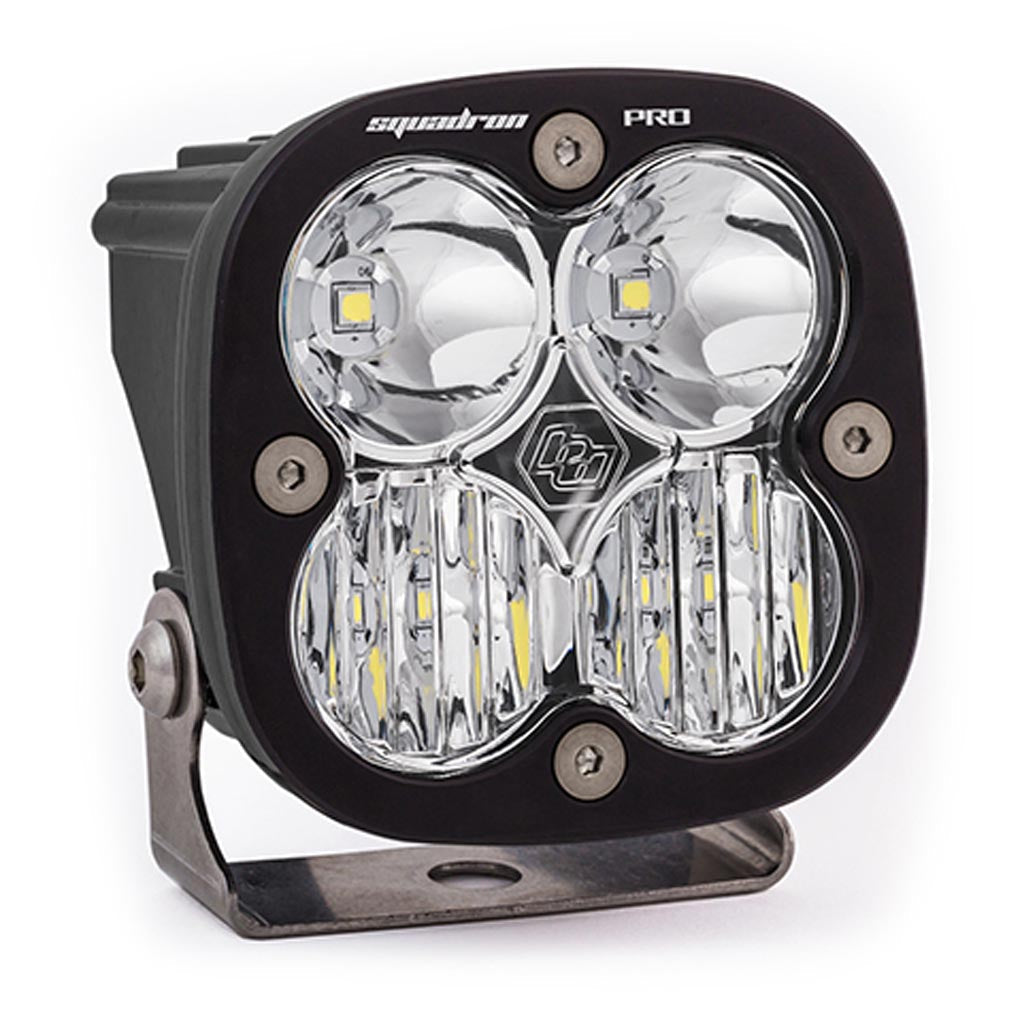

- Baja Designs Squadron Pro White / Driving/Combo / One Pod Only / 490003

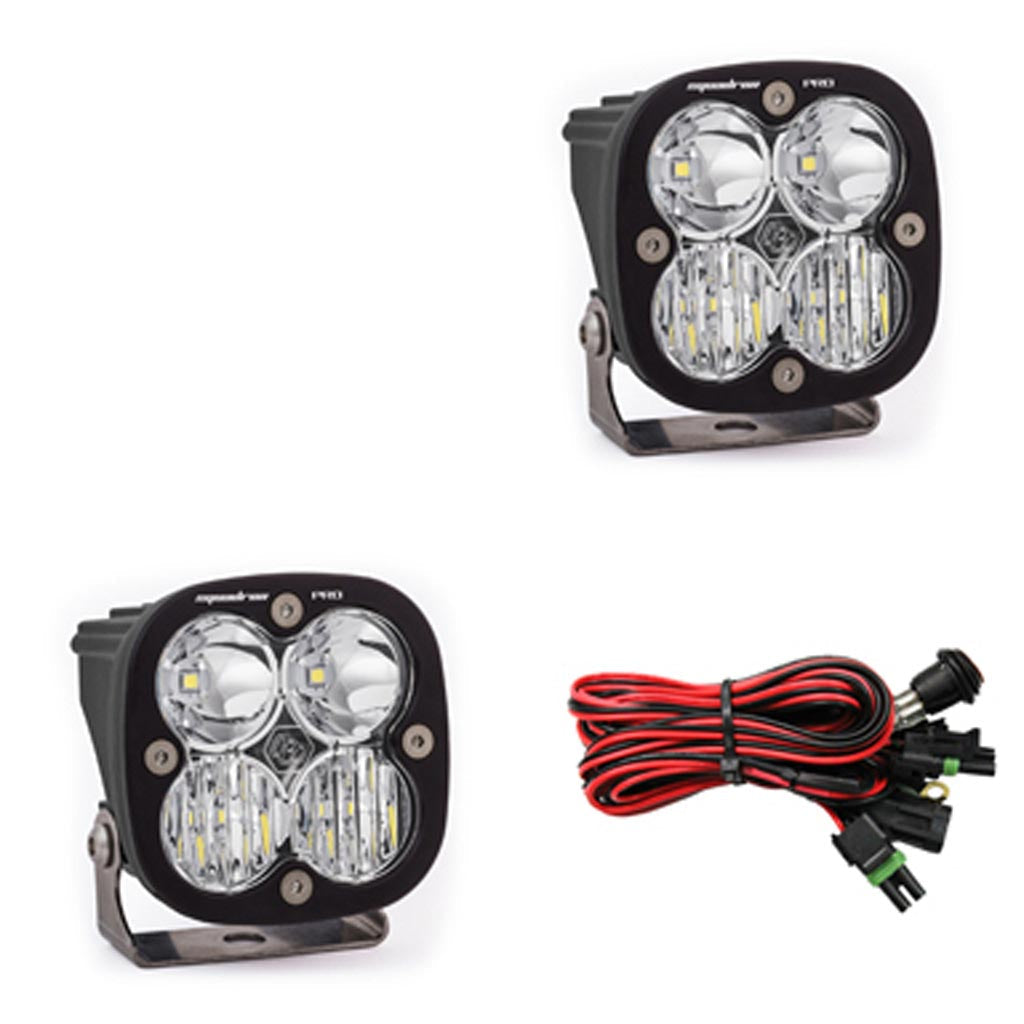

- Baja Designs Squadron Pro White / Driving/Combo / Pair With Harness / 497803
- Baja Designs Squadron Pro White / Wide Cornering / One Pod Only / 490005

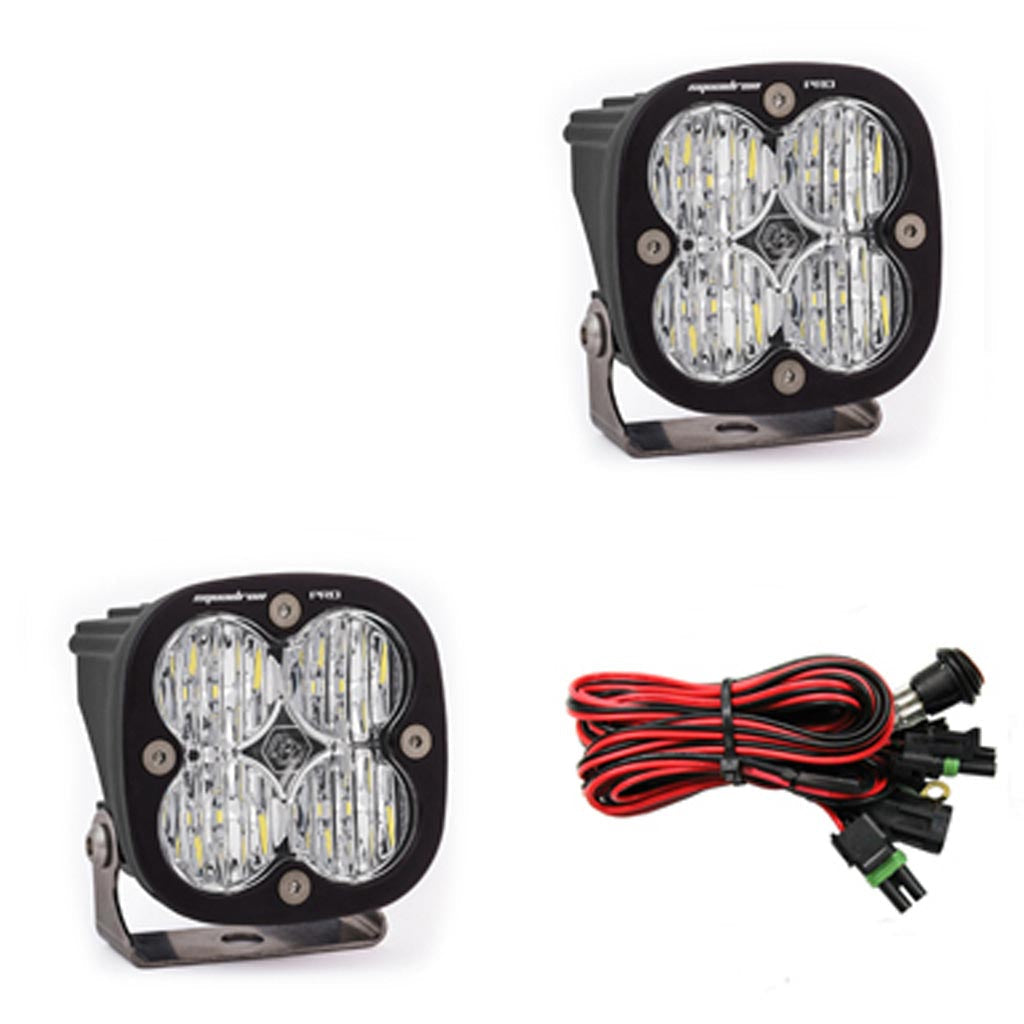

- Baja Designs Squadron Pro White / Wide Cornering / Pair With Harness / 497805
- Baja Designs Squadron Pro White / Work/Flood / One Pod Only / 490006
- Baja Designs Squadron Pro White / Work/Flood / Pair With Harness / 497806

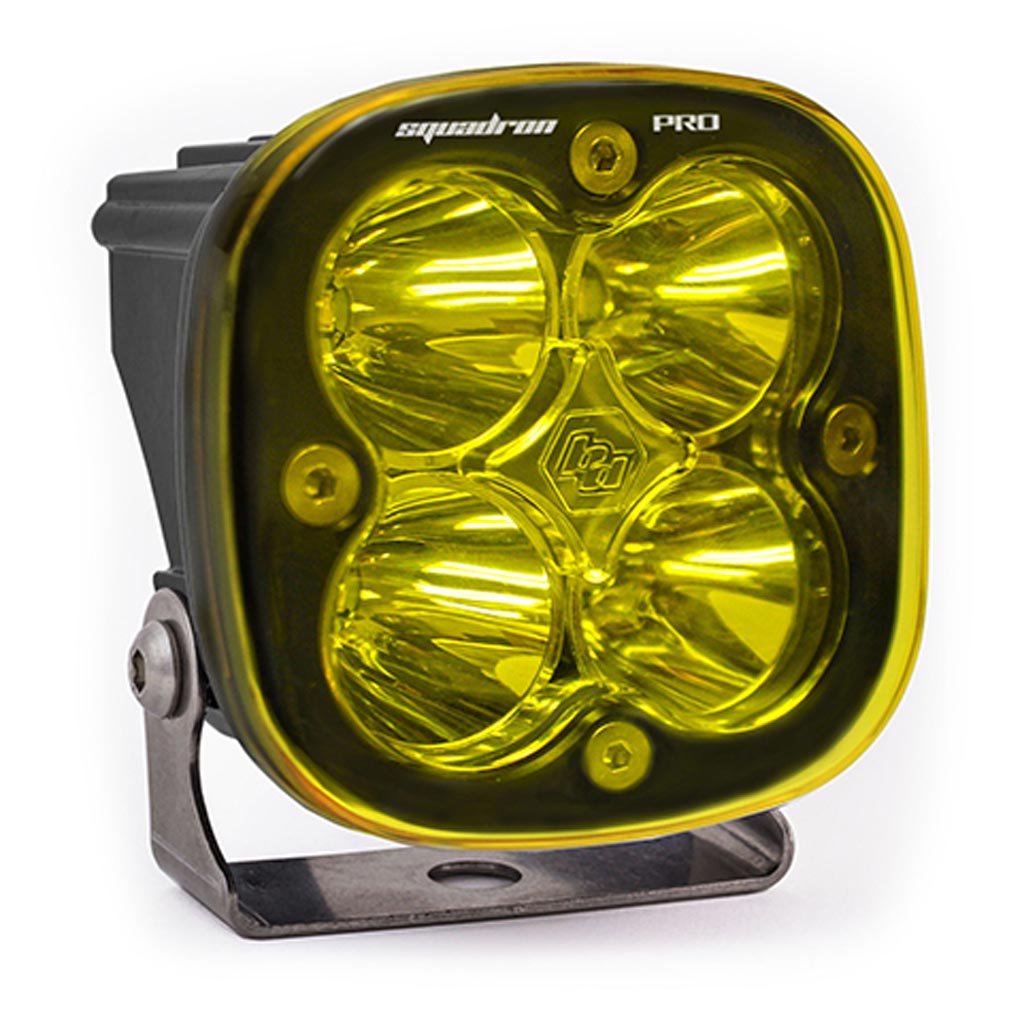

- Baja Designs Squadron Pro Amber / Spot / One Pod Only / 490011

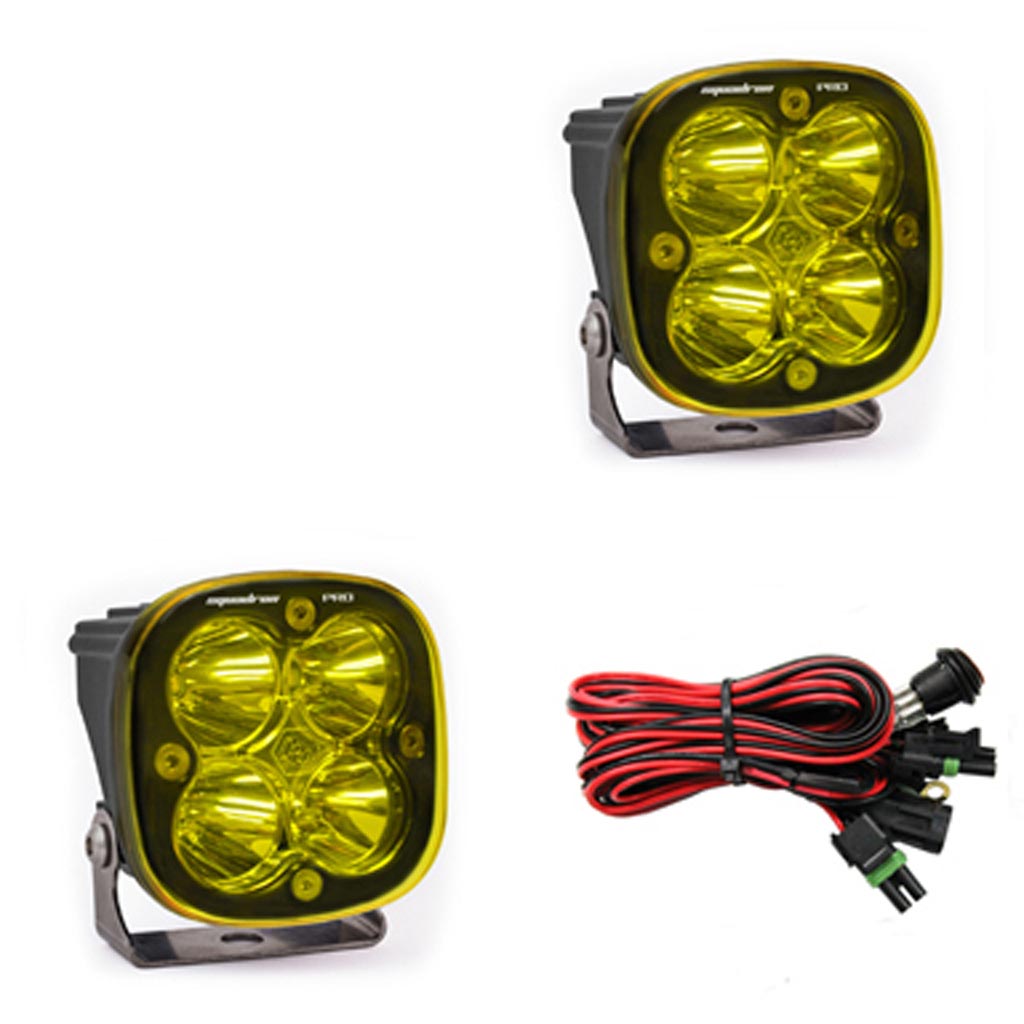

- Baja Designs Squadron Pro Amber / Spot Pair With Harness / 497811
- Baja Designs Squadron Pro Amber / Driving/Combo / One Pod Only / 490013

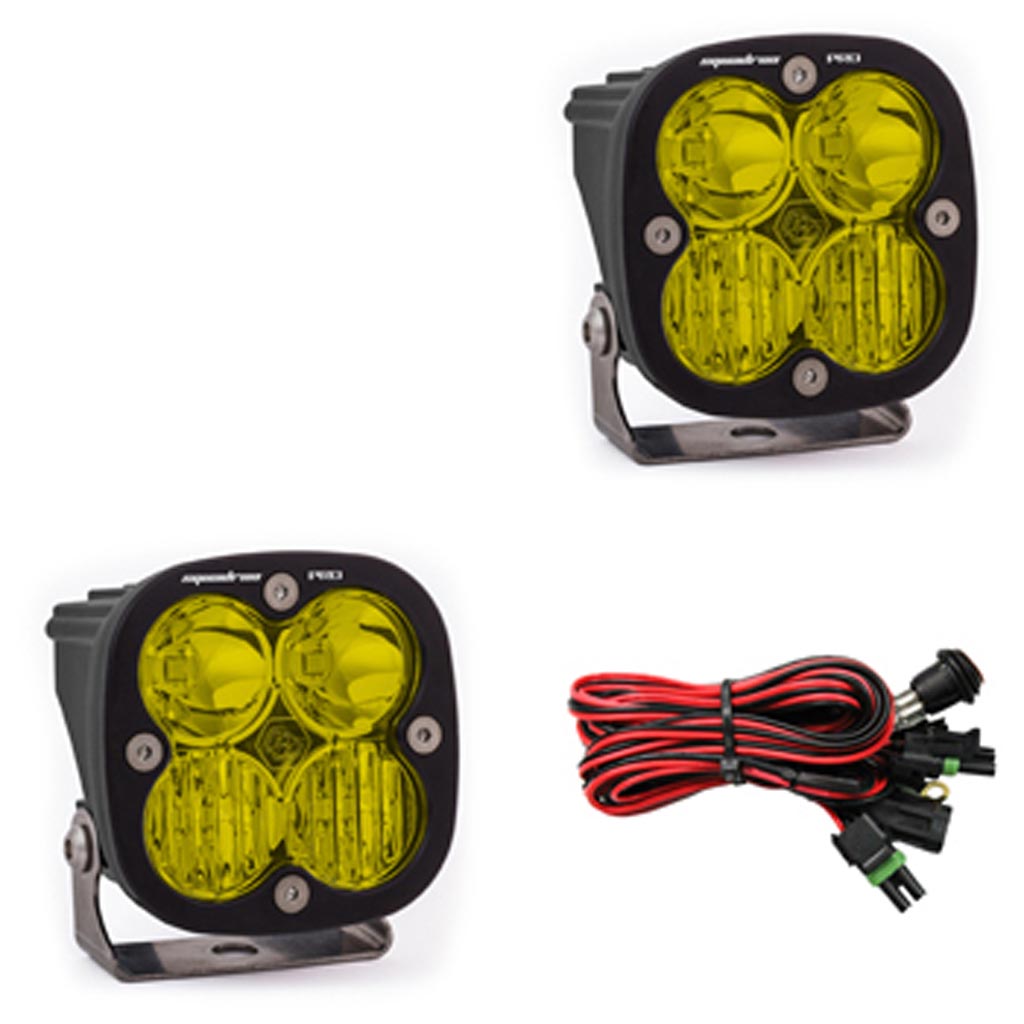

- Baja Designs Squadron Pro Amber / Driving/Combo / Pair With Harness / 497813
- Baja Designs Squadron Pro Amber / Wide Cornering / One Pod Only / 490015
- Baja Designs Squadron Pro Amber / Wide Cornering / Pair With Harness / 497815
- Baja Designs Squadron Pro Amber / Work/Flood / One Pod Only / 490016
- Baja Designs Squadron Pro Amber / Work/Flood / Pair With Harness / 497816
